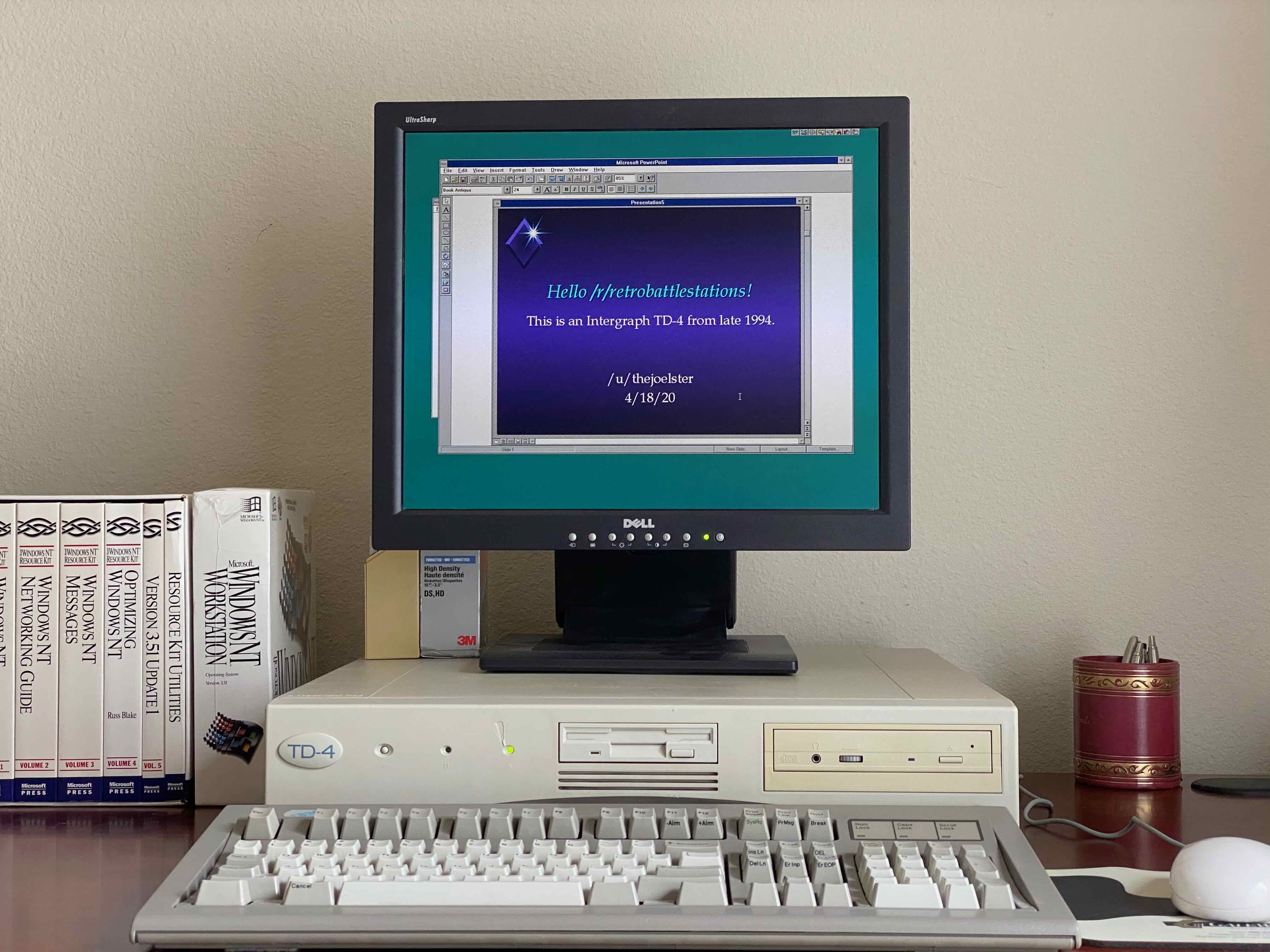

Intergraph TD-4 workstation

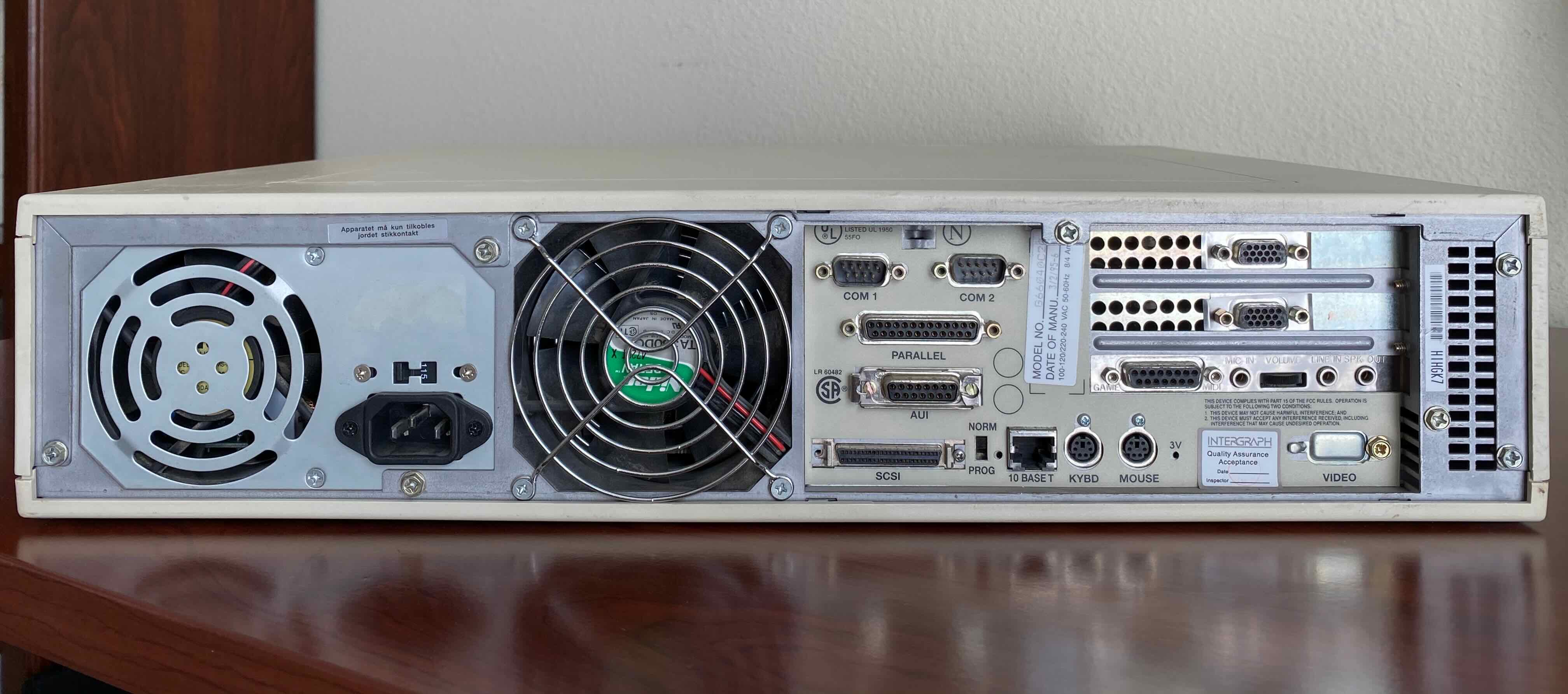

Rear of the Intergraph TD-4

The TD-4 is a mid-1990s high-end “Pizza Box” or desktop-form-factor workstation produced by Intergraph. Intergraph is noteworthy for a few reasons; first, it was a major player in the CAD workstation space as early as the 1980s, second, it helped propel Windows-based CAD to become the de-facto industry standard, and finally, as is well known Carmack used a very-widescreen Intergraph monitor to write “Doom”.

The TD-4 is a good representation of where the high-end graphics market was going in the mid-1990s. The hegemony of Unix workstations were being challenged by Intel’s dominance of the low-end of the market, and x86 commodity hardware was reaching price:performance ratios that started to challenge SGI/Sun’s dominance in that area. The Pentium Pro would signal a major shift that would place SGI and the RISC market in general on a downward trajectory in the late 1990s that would not be reversed until a decade later with the rise in mobile computing.

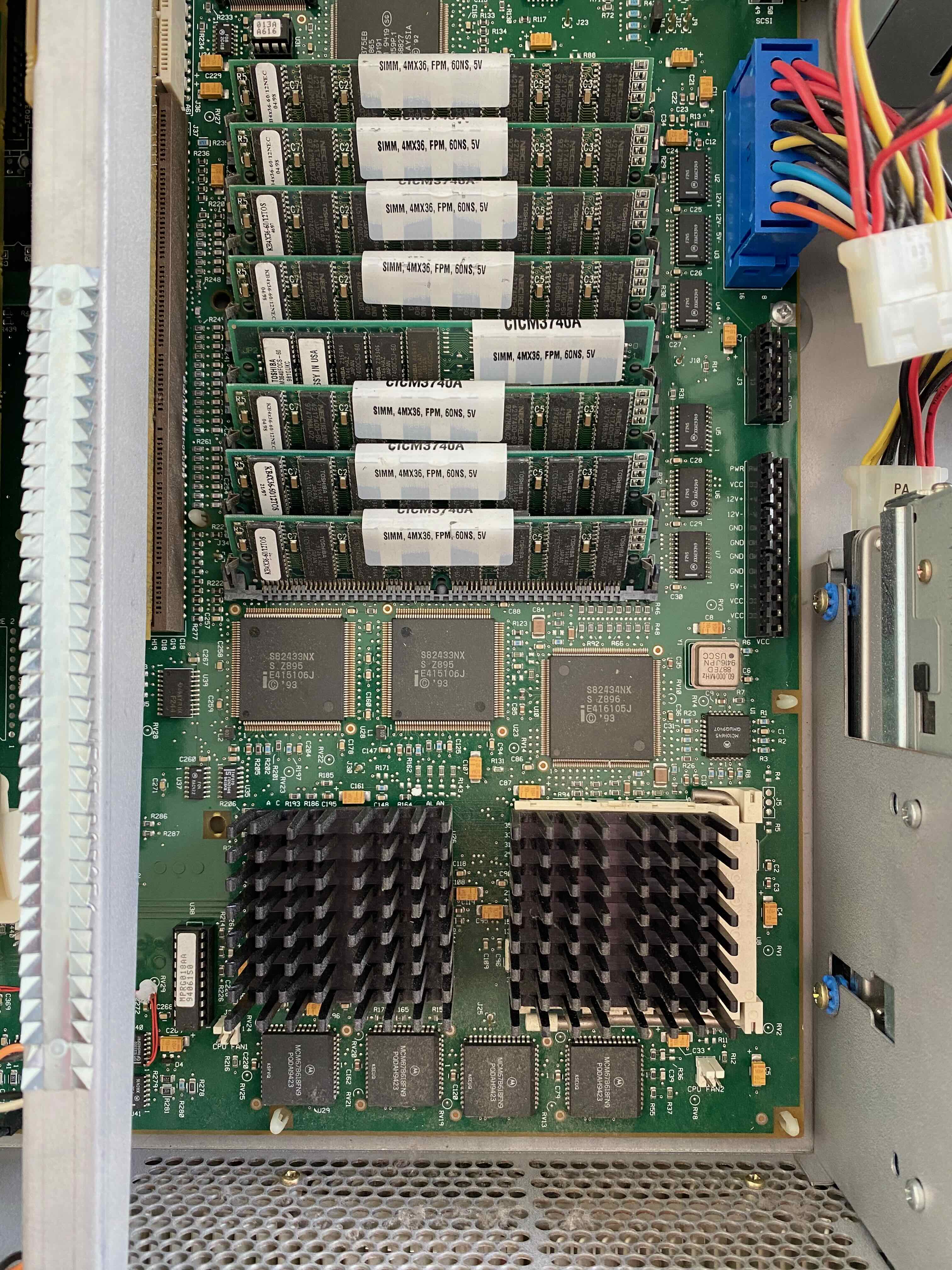

Intergraph TD-4 motherboard

This machine is unusually well kitted-out and likely received some upgrades during its service life. It contains two Pentium 90 processors, 128 MB of RAM across eight 16 MB modules, and two Weitek P9100 graphics cards allowing for a dual-display setup. My unit contains a 2 GB Seagate disk (not factory installed) and CD-ROM drive, both interfaced with over 50-pin SCSI via an Adaptec chipset. All of this is out-of-box compatible with the Windows NT 3.51 HCL with the exception of the Weitek cards.

The quality of the overall build is quite good to exceptional compared to most x86 hardware at the time. Purchase price is hard to cite directly based on this configuration, but likely was around $15,000 at initial release.

Usable space is maximized in the build despite the large cards. Everything is easily accessible and replaceable as you would expect from a high-end workstation of this period.

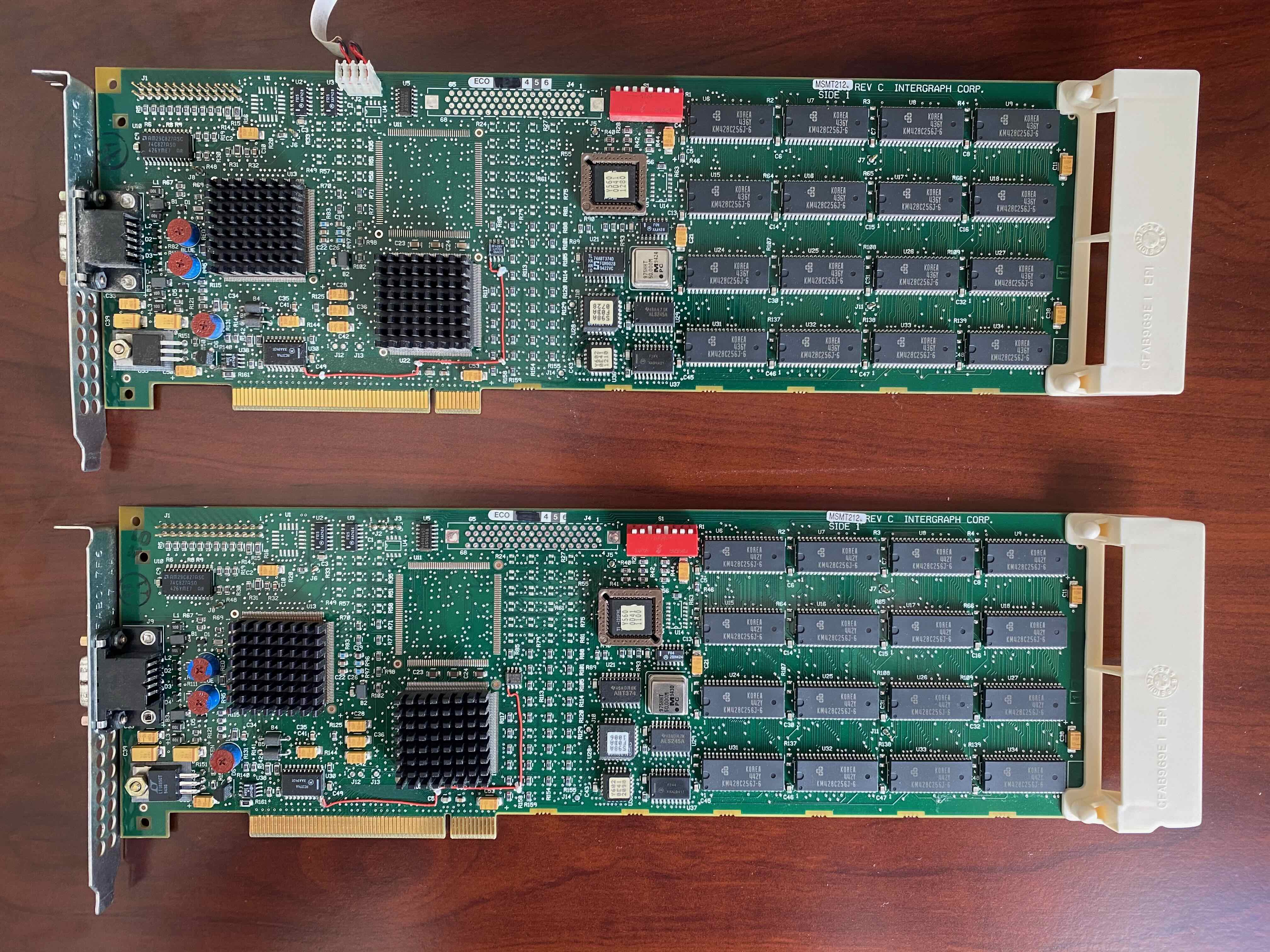

Weitek P9100 graphics cards

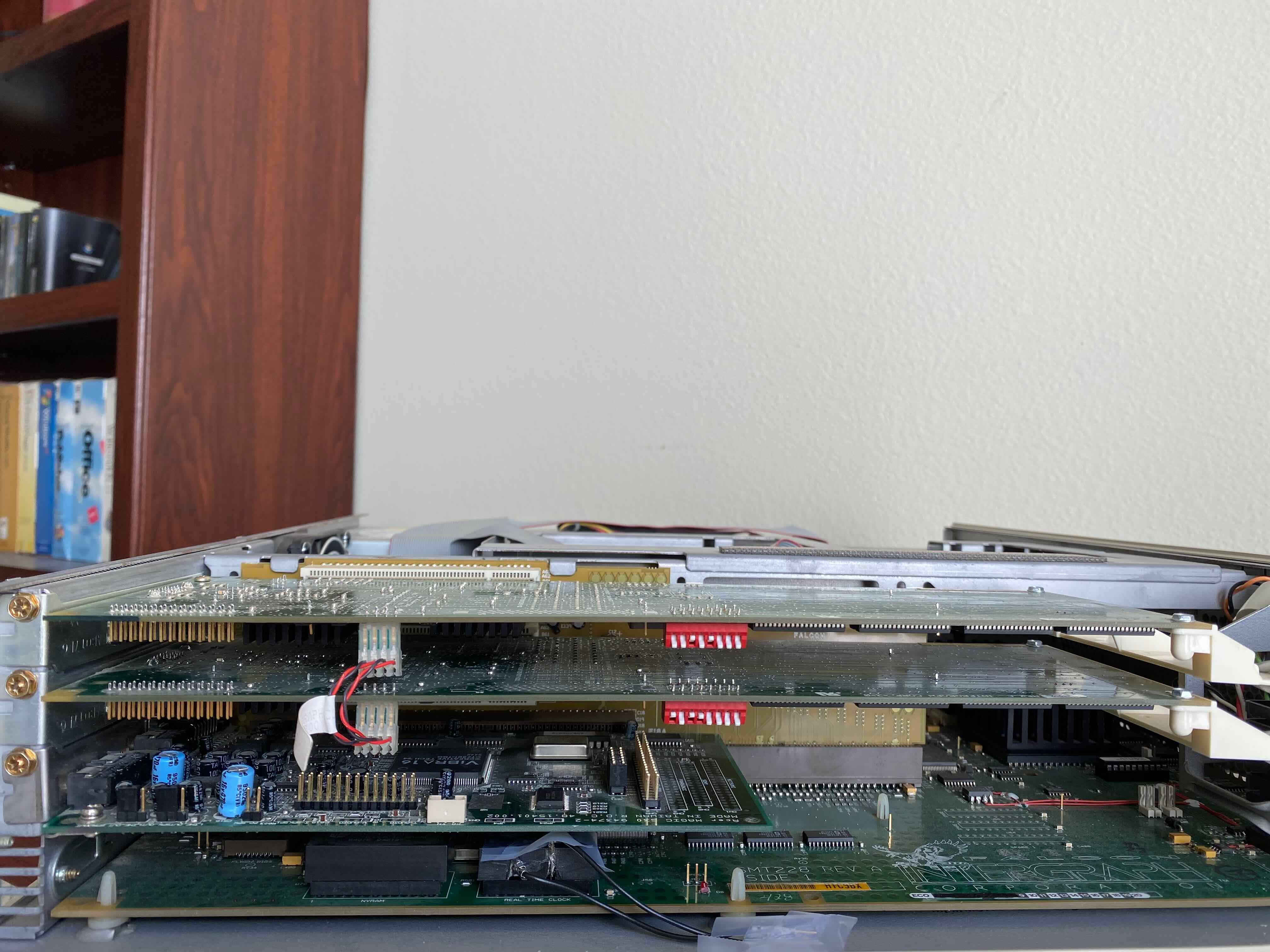

Graphics cards installed in the TD-4

A few years ago I was able to locate the Weitek P9100 Intergraph dual-head display driver after many hours searching the internet archive as well as some other resources. Reach out if I can be of help to you refurbishing one of these.

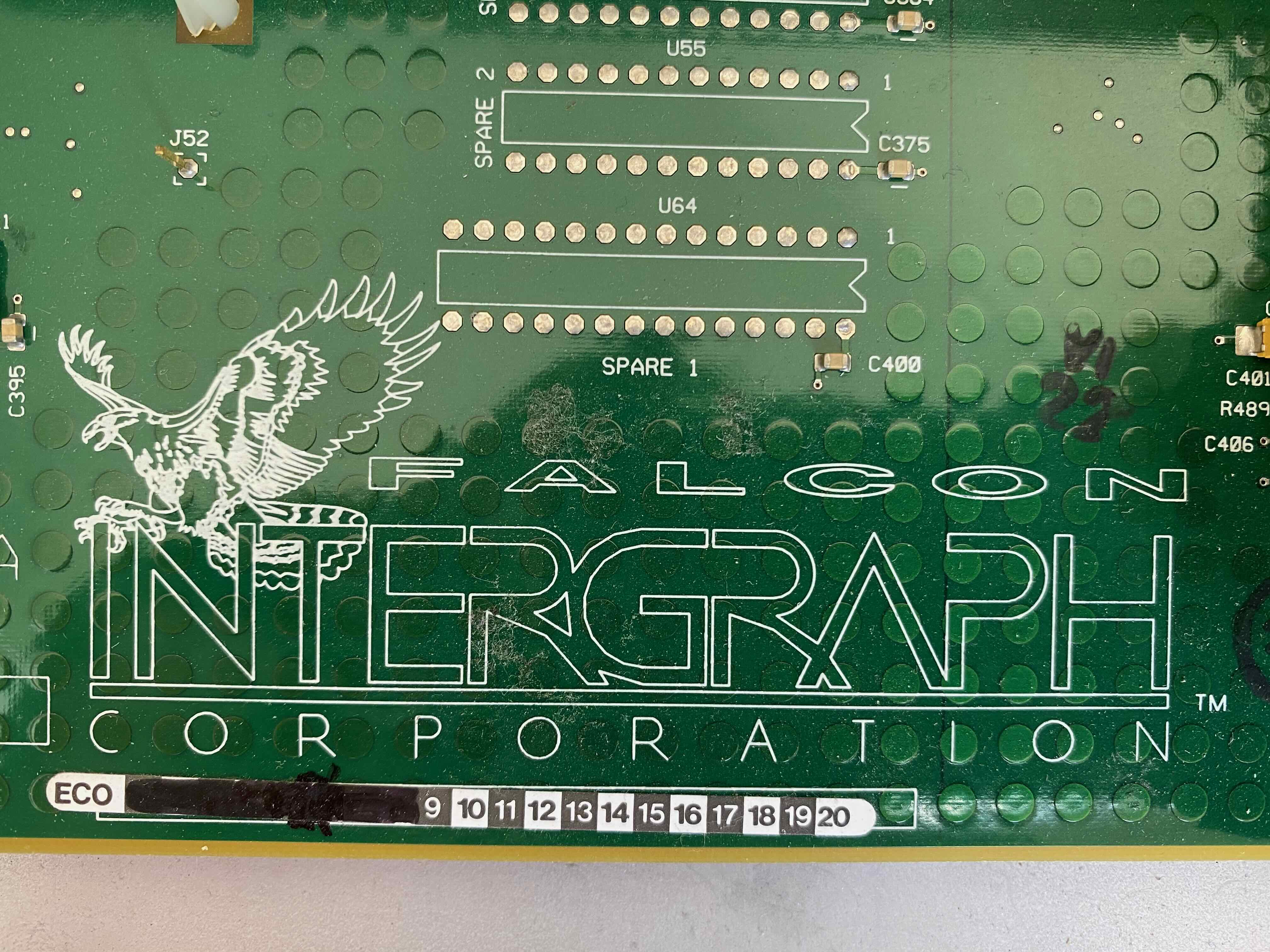

Processors and support chips inside the TD-4
